More Integrations And Applications Need To Be Involved With Micro-Supercapacitors

By

“The MSCs usually present planar structures, and the two electrodes are separated in plane without additional separator. The narrow electrode gap of MSC allows rapid transportation of electrolyte ions between the electrodes. Due to the short diffusion distance, charges are easy to be accumulated and released during charging and discharging procedure, enabling an ultrahigh power density of MSC for electrical appliances.” said paper corresponding author Liangti Qu, professor of Key Laboratory of Organic Optoelectronics & Molecular Engineering of Ministry of Education, Department of Chemistry, Tsinghua University. “The ultrahigh power density of MSC promotes a large driving force for electrical appliances, thus the MSC shows a great potential in micro wearable electronics.”

Qu explained the advantages of the planar feature of MSC, especially for its small area, usually within centimeters to micrometers footprint, which can be assembled in some portable electronic devices, such as integrated circuits on chips, micro robots and position indicators.

 “The integration of MSCs and other electronics gradually become critical development directions of MSCs, and constitute an important part of future integrated circuits,” Qu said. “The integrated application of MSCs mainly involves the connections and matching degree between each electrical component, and the fitness of the materials and structures of the device. These discussions of the device have never been mentioned before.”

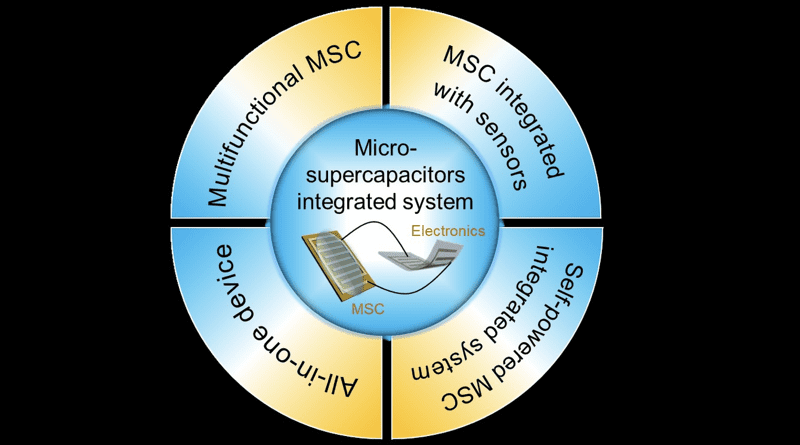

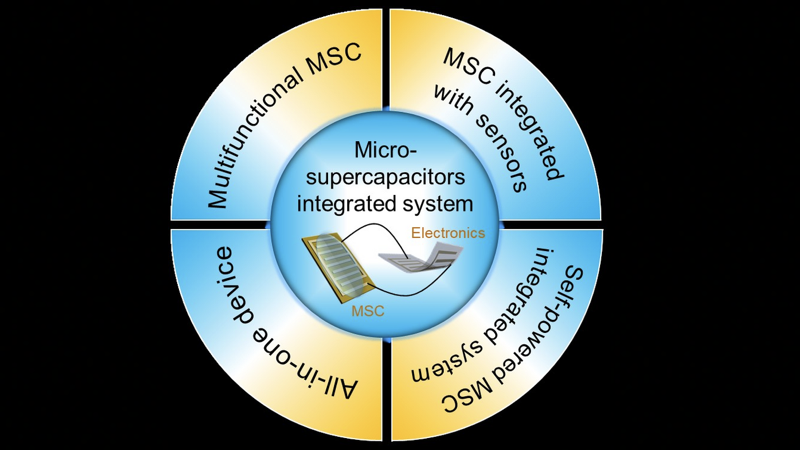

Focusing on the applications of multi-functional MSCs and MSC integrated circuits, Qu and his team introduced some special properties of multi-functional MSCs in the review. Additionally, from the perspective of integration, as the energy storage units, MSCs combining with energy-consuming devices (such as sensors) or energy-supplying devices are systematically discussed. To acquire a robust and compact structure, designing MSCs and various electronics into an all-in-one structure by using compatible materials is also listed. Finally, challenges and potential development of MSCs integrated systems are put forward.

“We surmised the research goal of MSC integrated systems in the review. The development of integrated MSC devices from simple, crude connection with metal wires to combination of all components into one shared substrate, and then to an organic unity in all-in-one structure makes the integrated MSCs device become more compact and robust.” Qu said.

 “The integrating level of self-powered integrated devices composed of MSCs and energy generators is still far from satisfactory. Loose and rude connectivity between the power generating equipment and MSCs easily causes energy consumption, leading to low charging efficiency and insufficient charging voltage of MSCs,” Qu said. “Although the development of structure and integration of MSCs system have solved this problem to a certain extent, few compatible and multifunctional materials can be chosen. Besides, the integrated device structure design is also difficult to meet most practical applications. To address these issues, the multifunctional compatible materials and the structural design of integrated devices between MSCs and other electronic components should be developed in future MSC integrated devices.”
